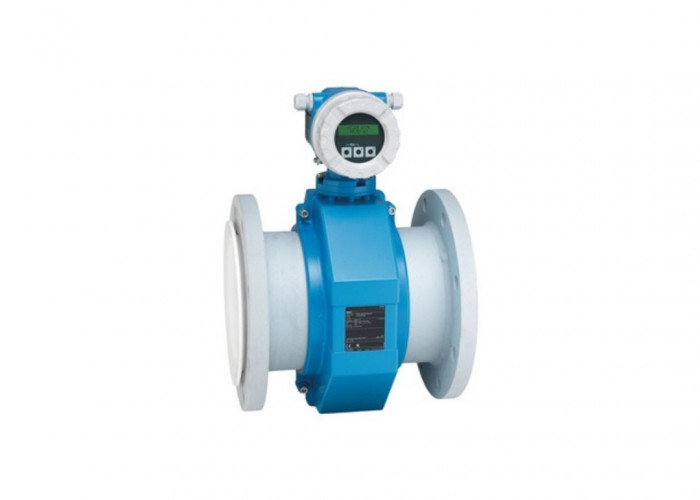

Electromagnetic Flowmeter

• Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)

• 9 dm³/min to 162 000 m³/h (2.5 gal/min to 100 000 gal/min)

• Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
• Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
• Liner material PTFE: –20 to +90 °C (–4 to +194 °F)

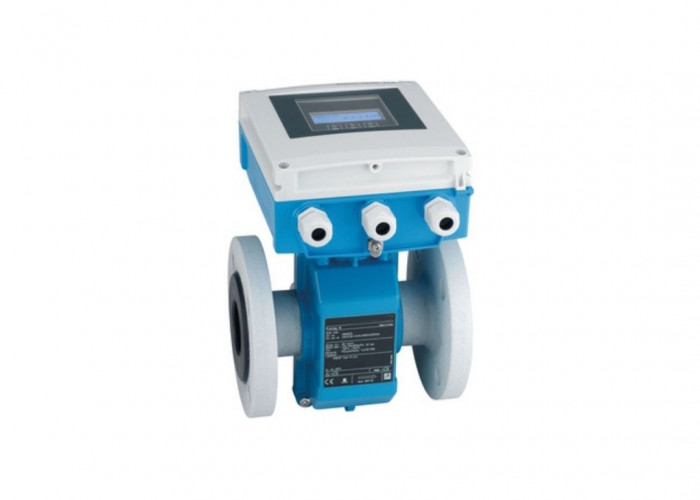

Electromagnetic Flowmeter

• Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s)

• 9 dm³/min to 162 000 m³/h (2.5 gal/min to 1030 Mgal/d)

• Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
• Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
• Liner material PTFE: –20 to +90 °C (–4 to +194 °F)

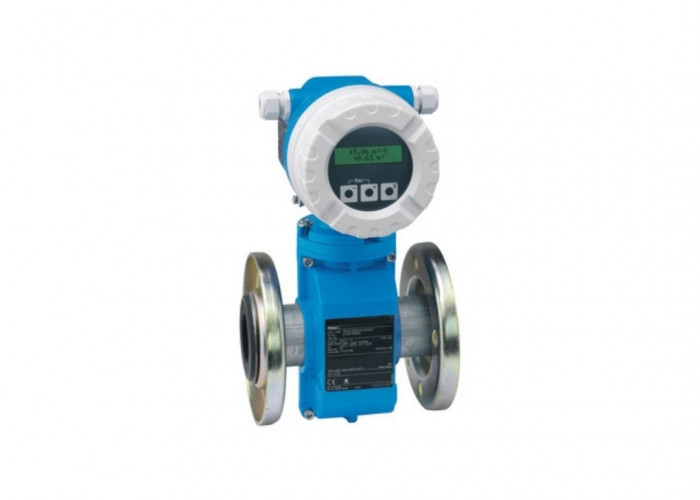

Electromagnetic Flowmeter

• Volume flow: ±0,5% o.r. ± 2 mm/s (±0,5% o.r. ± 0,08 in/s)

• 0.06 dm3/min to 600 m3/h (0.015 gal/min to 2650 gal/min)

• –20 to +150 °C (–4 to +302 °F)

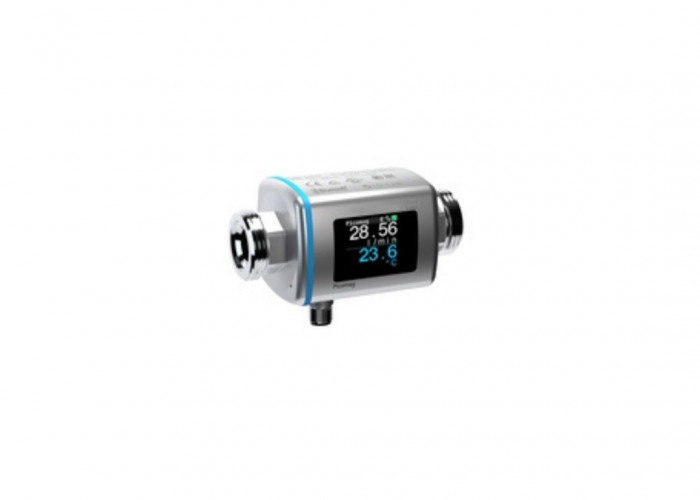

Electromagnetic Flowmeter

• Volume flow: +/-0.8% o.r. +/- 0.2% o.f.s

• up to 750 l/min

• -10 to 70°C (+14 to +158 °F)

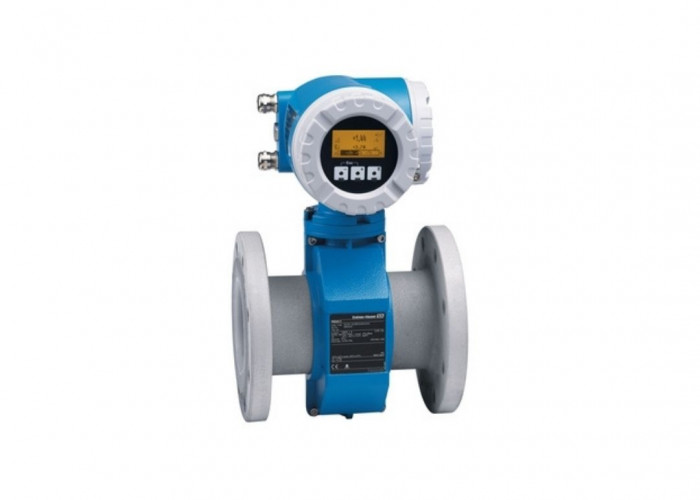

Electromagnetic Flowmeter

• Volume flow: ±0.5 % o.r. ± 1 mm/s (0.04 in/s)

• 4 dm³/min to 9600 m³/h (1 to 44 000 gal/min)

• –10 to +110 °C (+14 to +230 °F)

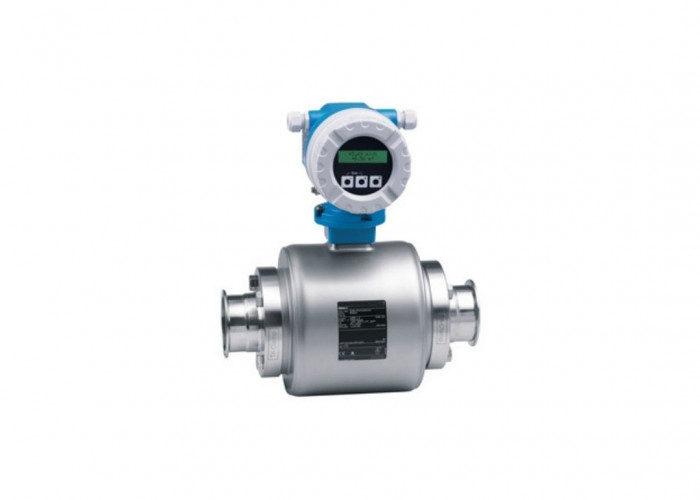

Electromagnetic Flowmeter

• Volume flow: ±0.5 % o.r.± 1 mm/s (0.04 in/s)
• Option: ±0.2 % o.r. ± 2 mm/s (0.08 in/s)

• 0.06 dm3/min to 600 m3/h (0.015 gal/min to 2650 gal/min)
