Pumping Stations
Check Valve
Material:
• body - ductile cast iron EN-GJS-400-15
Max. working temperature: 60°C (other on request)
Installation flanges according to EN 1092-2 or on request according to other standard

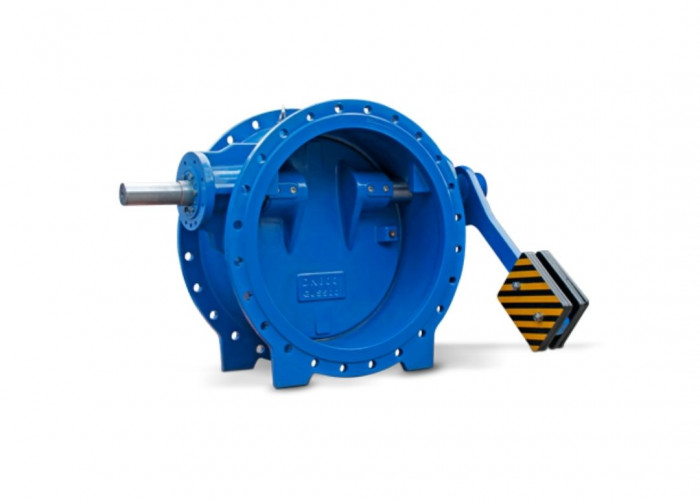

-Flap Check Valve - welded design
Material: body - steel S355J2G3
Max. working temperature: 60°C (higher on special request)
Installation flanges according to EN 1092-1 or on request according to other standards
• body - ductile cast iron EN-GJS-400-15
Max. working temperature: 60°C (other on request)
Installation flanges according to EN 1092-2 or on request according to other standard
-Flap Check Valve - welded design
Material: body - steel S355J2G3
Max. working temperature: 60°C (higher on special request)
Installation flanges according to EN 1092-1 or on request according to other standards
-main_image.jpg)
Check Valve
Main Applications
• General irrigation systems
• Domestic water supply
• Waste water treatment plants
• Air-conditioning systems
Technical Data
• Nominal pressurePN 10, PN 16
• Max. nominal sizeDN 400
• Max. allowed fluid temperature70 °C
Benefits
• Approved for drinking water applications due to epoxy coating
• General irrigation systems
• Domestic water supply
• Waste water treatment plants
• Air-conditioning systems
Technical Data
• Nominal pressurePN 10, PN 16
• Max. nominal sizeDN 400
• Max. allowed fluid temperature70 °C
Benefits
• Approved for drinking water applications due to epoxy coating
Submit your product request directly and our staff will contact you to provide you with all relevant information.
Why choose our products?
- High quality
- Resistant to external factors
- Competitive price
